Q66S Automotive LED Headlight Bulb 40W 5000LM 6500K IP65

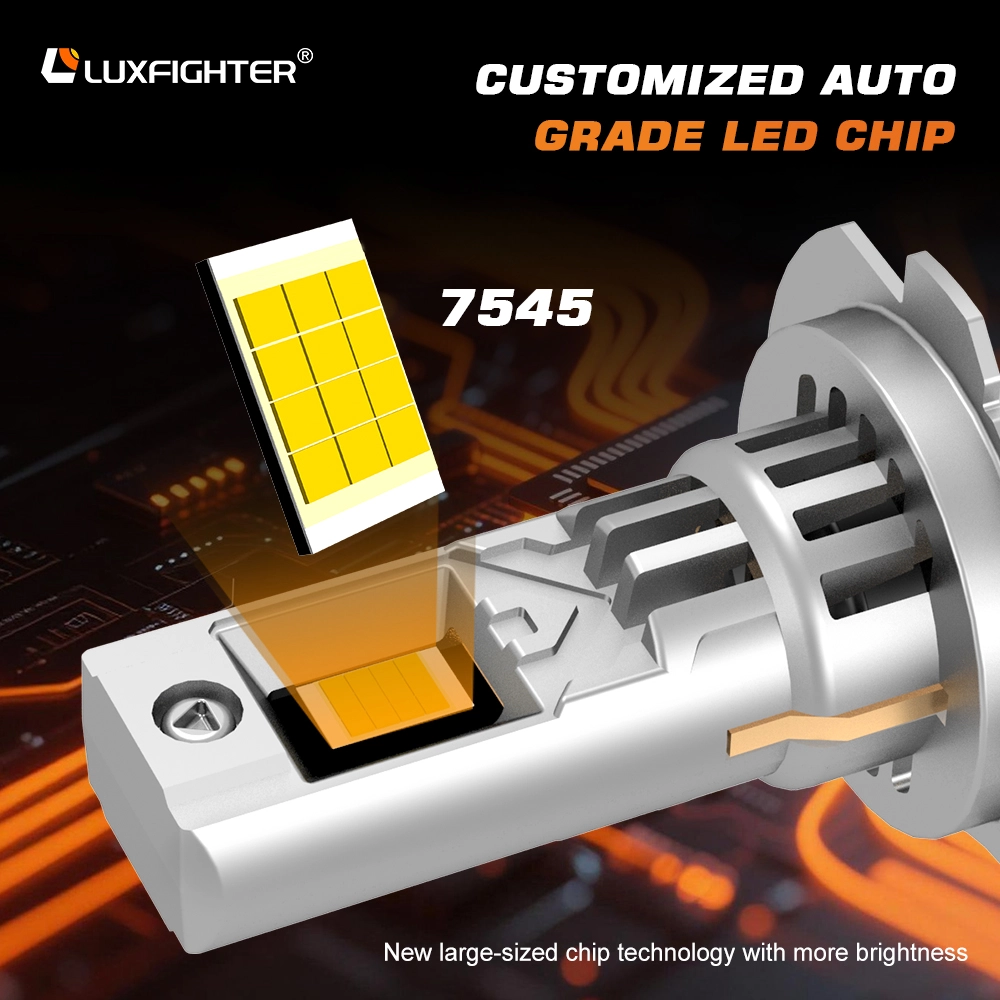

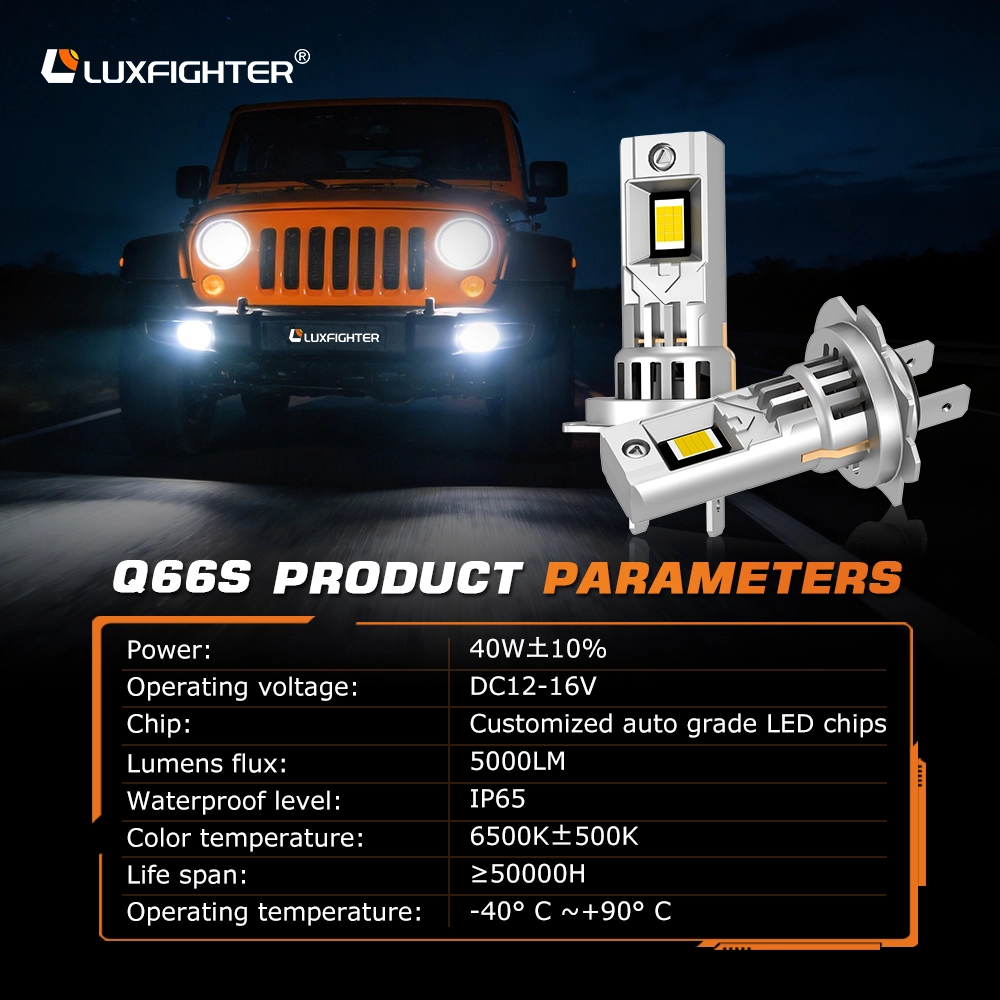

The Q66S is a high-brightness LED headlight bulb designed for automotive lighting upgrades and aftermarket replacement applications. It features a custom automotive-grade LED chip with a rated power of 40 W ±10%, a rated luminous flux of 5,000 lm, and a color temperature of 6,500 K±500 K, delivering a lighting effect that approximates cool white light.

This headlight bulb employs a narrow-gap lighting structure with an LED chip gap of approximately 1.5 mm and a 1:1 light distribution pattern, designed to closely approximate the luminous position of the original halogen filament, thereby minimizing the risk of distinct dark zones and light distribution misalignment. The zinc alloy heat dissipation structure, combined with an integrated high-speed turbo fan operating at up to approximately 16,000 rpm, enables active heat dissipation under high-power operating conditions.

The Q66S-H7 supports a DC operating voltage of 12–16 V, features an IP65 protection rating, and operates within a temperature range of-40 °C to +90 °C. It offers in-place installation with size compatibility, plug-in installation, and rapid replacement capabilities, making it ideal for product bundling sales among automotive parts wholesalers, headlight upgrade specialty stores, repair channels, regional distributors, and cross-border e-commerce sellers.

Product Details & Specifications

Key Features

（1）Upgraded high-brightness LED lighting

The Q66S-h7 delivers a luminous flux of 5,000 lm per lamp and 10,000 lm per set, featuring custom-engineered automotive-grade LED chips. It is suitable for upgrading original halogen lamps in compatible vehicle models as well as for aftermarket replacement applications.

（2）Lighting Design

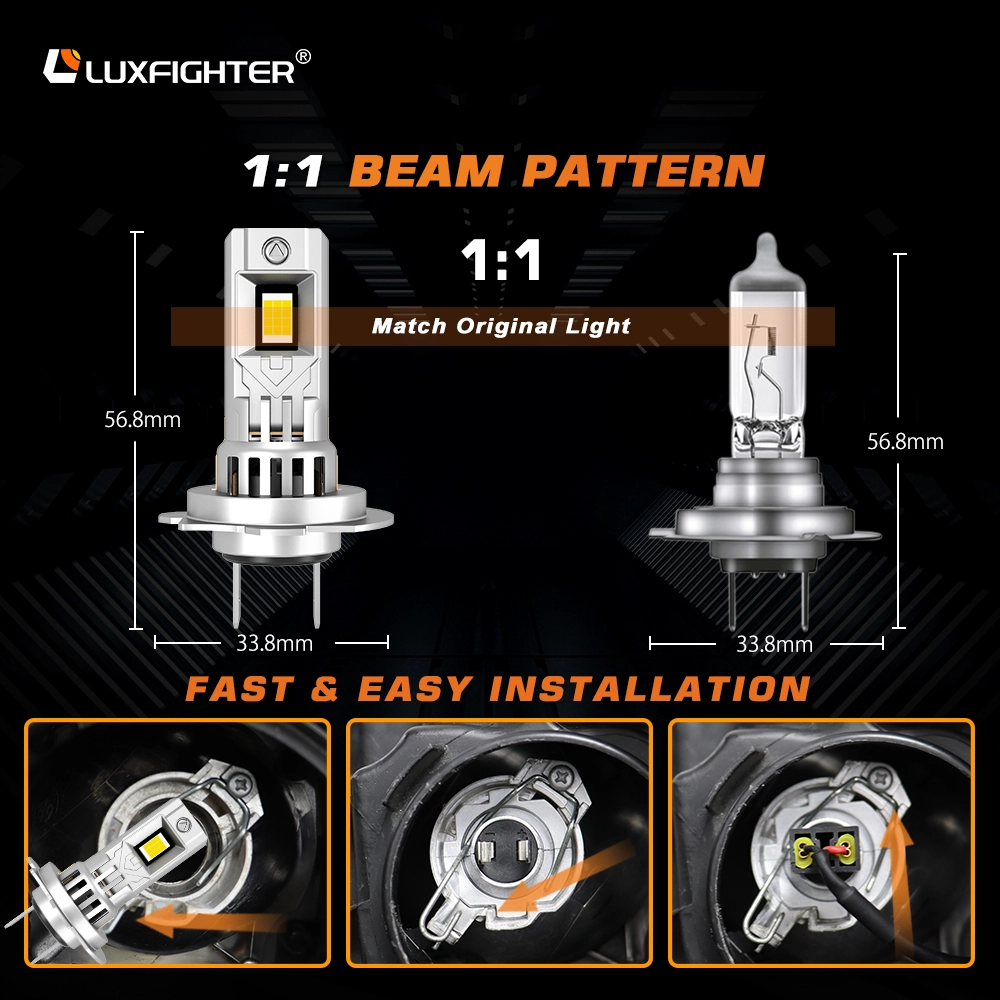

The Q66S-h7 employs a 1:1 optical design to compare the luminous positions of its halogen filament, which helps maintain a light source position closer to that of the original bulb when used with compatible reflective bowls or lens-type luminaires, thereby reducing the risks of optical misalignment, dark spots, and light scattering.

（3）Narrow-gap LED light-emitting structure

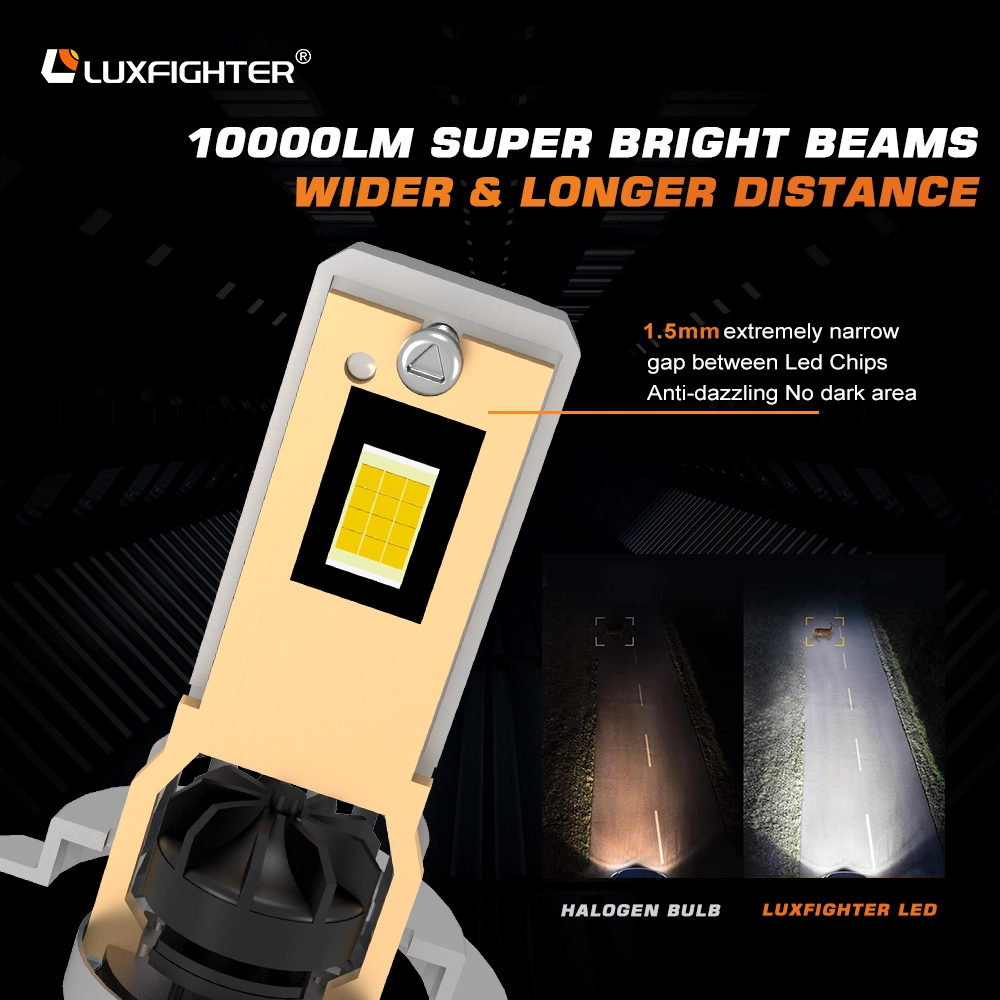

The LED chip gap in the Q66S-h7 is approximately 1.5 mm; the narrow-gap layout helps concentrate the light-emitting area, bringing the light source geometry closer to the linear emission profile of conventional halogen filaments.

（4）Active cooling system

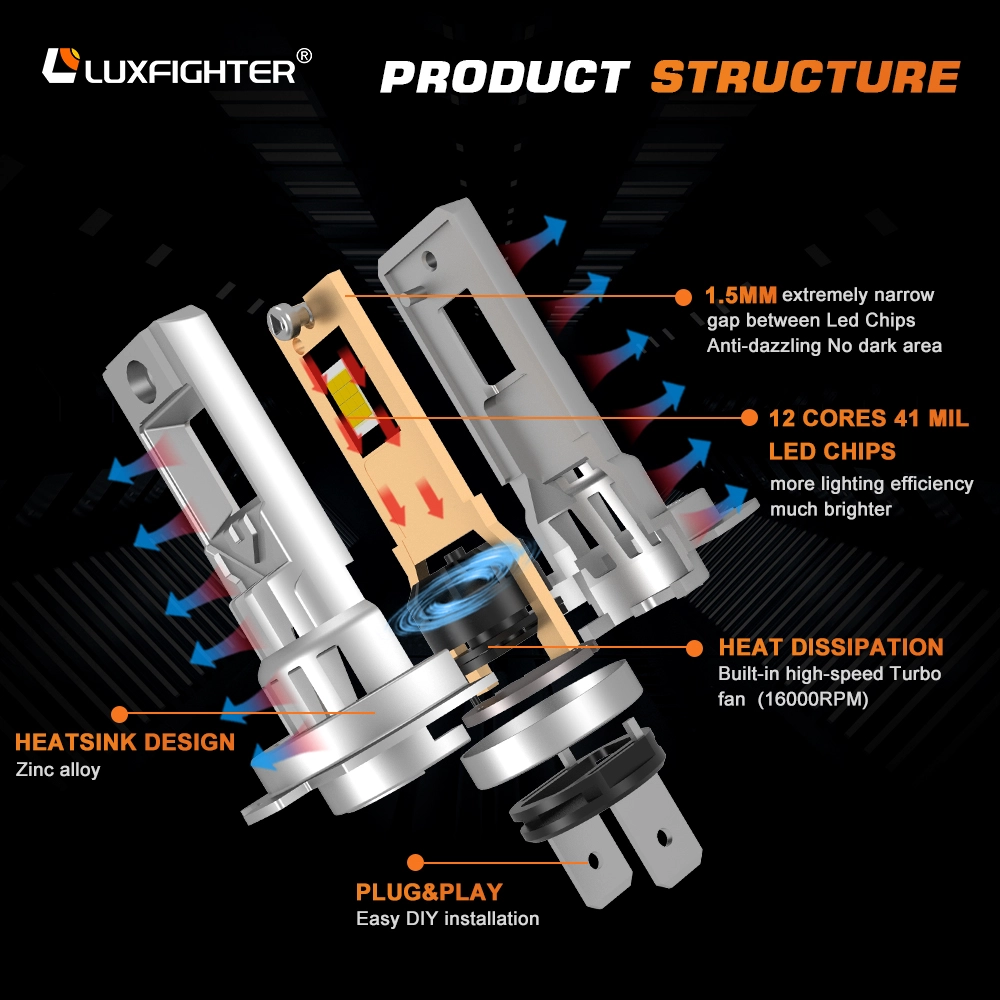

The Q66S-h7 is constructed from a zinc alloy and features a heat dissipation structure, with a high-speed turbine fan installed inside the lamp housing. The fan operates at a maximum speed of approximately 16,000 rpm. For LED bulbs in the 40W class, active cooling helps reduce heat accumulation within the lamp housing.

（5）12–16 V voltage range

The operating voltage of the Q66S-h7 is DC 12–16 V, making it suitable for automotive lighting circuits with compatible voltage ranges. When selecting compatible models, buyers should simultaneously verify the vehicle voltage, bulb sockets, fuse ratings, lighting control modules, and fault detection logic.

（6）IP65 protection rating marking

The Q66S-h7 features an IP65 protection rating, providing complete protection against dust and low-pressure water spray (a standard specification for outdoor lighting fixtures and automotive headlights), making it suitable for use in rain, snow, low-temperature, dusty, and off-road environments.

（7）Plug-in installation orientation

1:1 in-situ replacement of the original vehicle's halogen lamps, featuring a plug-and-play design for quick installation—fully eliminating the need for wiring modifications, making the process fast and convenient.

Applications & Vehicle Compatibility

（1）Automotive after-sales replacement

Suitable for compatible vehicle models requiring replacement of aged, discolored, or damaged halogen bulbs. The Q66S-h7 is part of the Q66S direct-mount headlight bulb upgrade series—a best-selling product line from luxfighter—supplied to repair shops, automotive lighting specialty stores, and automotive accessories dealers.

（2）Halogen lamp to LED upgrade

The Q66S-h7 is designed for the replacement and installation of original vehicle-specification halogen bulbs; it holds E-mark, Dot, and other relevant certifications, making it suitable for vehicles for which such modifications are permitted under applicable regulations. It features a 1:1 optical design and compact dimensions (subject to actual beam distribution and regulatory compliance testing).

（3）Passenger Vehicle and SUV Lighting Accessories

The Q66S-h7 is compatible with sedans, SUVs, and off-road vehicles; for B2B procurement, more precise categorization can be performed based on bulb base type, low/high beam position, lamp housing design, and vehicle model year.

（4）Pickups, off-road vehicles, and outdoor vehicles

In off-road and harsh weather environments, the Q66S-h7 can serve as a selection reference for the lighting product line of pickup trucks, off-road vehicles, and outdoor vehicles; however, actual compatibility still requires verification of bulb specifications, installation space, dust covers, and the vehicle lighting control module.

（1）The operating voltage of the vehicle lighting system is compatible with the DC 12–16 V range.

（2）The original vehicle employs the same bulb base (H7) and pin configuration as this product.

（3）The original vehicle lighting fixtures can accommodate lamp housings measuring approximately 56.8 mm × 33.8 mm, along with their heat dissipation assemblies.

（4）The original vehicle lighting control module will not trigger a fault indication, flash, or shut down in response to changes in LED load.

（5）After installation, the direction of the luminous surface, the locking position, and the center of the light source of the new bulb must match those of the original bulb.

Product Advantages

（1）The Q66S already includes fundamental parameters such as power, voltage, luminous flux, color temperature, protection rating, service life, and operating temperature, enabling wholesalers to compile product catalogs, categorize products by different brightness levels, and provide standardized technical information to downstream customers.

（2）With 80W power, 10,000 lm luminous flux, 6500K cool white light, a narrow-gap LED chip architecture, and a 1:1 optical design, these features serve as compelling selling points for the automotive lighting upgrade market. The product is positioned as an LED replacement solution for halogen lamps in compatible vehicle models, rather than being marketed as a universal bulb compatible with all vehicle types.

（3）The product features a highly visualized structural design, comprising a 1.5 mm chip gap, a zinc alloy heat sink, a turbine fan, and a plug-in mounting interface. Suppliers can help B2B buyers reduce sales training costs by providing visual comparisons, dimensional comparisons, and installation videos.

（4）Q66S-h7 is suitable for passenger vehicles, SUVs, off-road vehicles, and harsh weather application scenarios. It is ideal for distribution channels including automotive accessories wholesale, repair chains, headlight modification services, regional dealerships, and cross-border e-commerce. The product also includes model compatibility tables and regulatory compliance notes tailored to each specific channel.

Supplier Advantages for B2B Buyers

（1）Low MOQ of 2 pcs – test the market with minimal risk before scaling orders

（2）Competitive tiered pricing – margin-friendly from 1,000 pcs and aggressive at 2,000+ pcs

（3）OEM/ODM support – private labeling, custom packaging, and logo programs available

（4）Flexible lead time – reliable restocking for ongoing supply

（5）Factory-direct brand (LUXFIGHTER) – consistent quality control across batches

（6）1year warranty. We offer replacement or repair for any qualityrelated issues.

FAQ

Q1:What type of automotive bulb is the Q66S?

The Q66S is an automotive LED headlight bulb designed to replace halogen bulbs or upgrade lighting in compatible vehicle models. It has a rated power of 40 W ±10%, a operating voltage of DC 12–16 V, a rated luminous flux of 5,000 lm per bulb, and a color temperature of 6,500 K ±500 K. The specific bulb base and mounting position should be verified based on your vehicle model.

Q2:Is the Q66S compatible with all vehicles?

Most automotive models on the market are compatible, but compatibility must still be verified based on your specific vehicle model. The Q66S must be fully compatible with the original vehicle's bulb base, pins, locking mechanism, dimensions, bulb position, voltage, and bulb housing space. Different brands, model years, configurations, and target markets may utilize varying bulb specifications; therefore, it is essential to verify the original vehicle's bulb model before procurement.

Q3:What is the difference between the 5,000 lm of the Q66S and the 10,000 lm advertised in the promotional images?

On the parameter page, the value of 5,000 lm is indicated for a single unit; however, our LED headlamp bulbs are sold in pairs, resulting in a total luminous flux of 10,000 lm per set. Before placing an order, you may confirm the luminous flux per unit, the total luminous flux per set, and the testing conditions with us.

Q4:Is the Q66S truly Plug and Play? Is a CANbus decoder required?

Yes, this is a direct-connect, plug-and-play installation design; however, whether wiring modifications are actually required depends on the vehicle's connector, base, lamp socket space, lighting control module, and fault monitoring system. In very rare cases, some vehicle models may exhibit flashing indicators, fault codes, or loss of illumination; the need for a CANbus decoder must be confirmed through testing on your specific vehicle model.

Q5:Is the Q66S suitable for rainy or snowy conditions, low temperatures, and off-road environments?

Yes, the Q66S through-hole headlights feature 6500K cool white light and boast an IP65 protection rating, making them suitable for use in rain, snow, low-temperature, dusty or sandy, and off-road environments; they provide complete dust and low-pressure water resistance. Their operating temperature range is from-40 °C to +90 °C, and actual performance depends on the installation sealing, the lamp housing cover, the wiring harness, the fan operating status, and the vehicle's operating environment.
